Recommendation

Model I withaluminum heater and model II with fair infrared heater.

Semiautomatic and manual operationons are available.

Specially designed mold sealing system for blowing big neck jar with high pressure.

One far infrared heater can serve one or two main machines.

Front clamping system enables machine run steadily.

Well-designed pneumatic system and buffering device ensure moving parts run without shock and noise.

High quality parts to lengthen machine's service life.

Far infrared heater is equipped with two coolers,one for cooling preform neck to avoid distortion,the other for thick preform heating.

Far infrared heater equipped with rotation system reduces the reject rate.

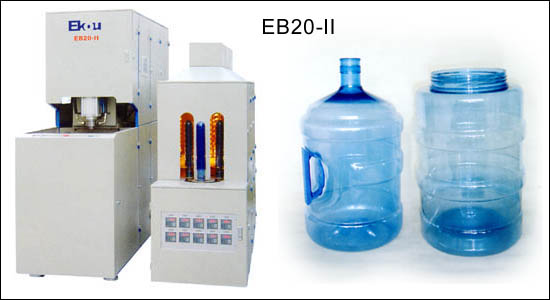

EB20-II Specification

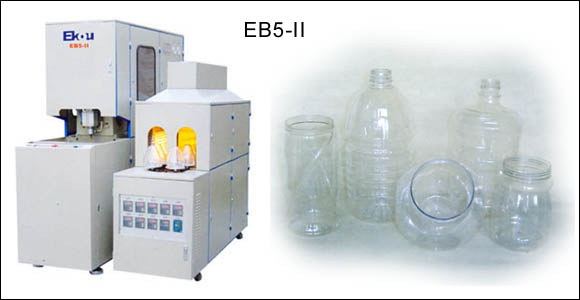

EB5-II Specification

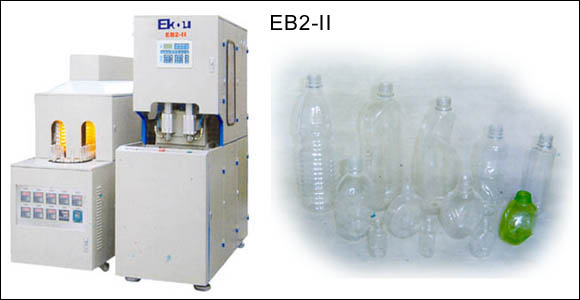

EB2-II Specification

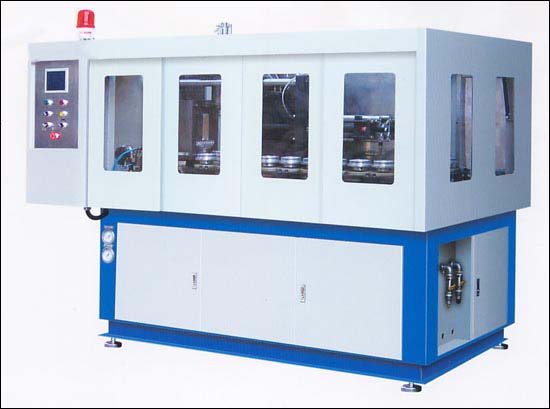

EB5-III
Model EB5-III EB20-II EB5-II EB2-II
Capacity BPH 600-900 60-90 400-800 700-900
Clamping Force KN 150 150 90 60
Mould opening stroke mm 230 400 235 135
Stretch mm 350 550 450 360
Bottle space between mm / / 140-180 120-150
Cavity / 1 1 2 2
Max. Container L 5 20 5 2
Max. Neck size mm 120 60 120 40
Max. bottle diameter mm 180 300 180 95
Max. bottle height mm 350 550 450 360
Installed Power KW 31 11.5 14 14
Max. Heating Power KW 30 10.4 12.8 12.8
Operating Air Pressure Kg/cm2 8 8 8 8
Operating Air Consumption 1tr/min 800 250 300 300
Blowing Air Pressure Kg/cm2 30 30 25 25
Blowing Air Consumption 1tr/min 900 400 350 350
Measurement (LxWxH) M 2.5x1.5x2 2.8x0.7x2 2x0.65x1.75 1.62x0.67x1.68
Weight Ton 2 2 0.71 0.58


Features Touch screen computer of MITSUBISHI.Operate consistently and simply.
Features pneumatic elements of German FESTO and Japan SMC.
Specially designed for energy-saving purpose.Mechanical unit is compact and sound.
Features trouble alert and diagnostic units to allow easy maintenance.
Environmentally friendly design.Nontoxic conveyor belt to carry preforms.
