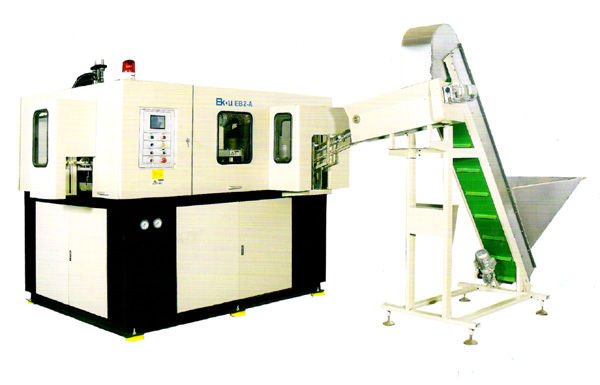

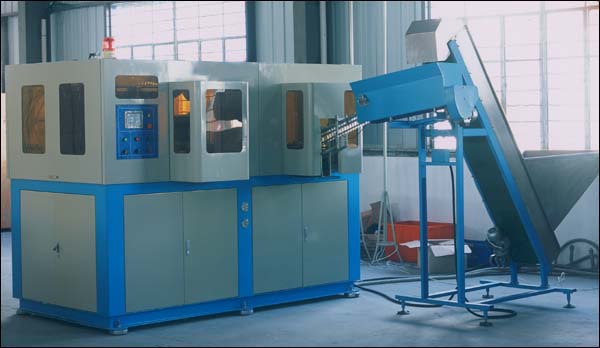

EB2-A


Preform conveyor equipped with sliding wheels,precise orientation,stable and reliable;

Operation panel by touch LCD,friendly interface and easy operation;

Layered preform heating system,easy temperature regulation,uniform heating effect to improve blow molding result to the utmost;
5-point double toggle clamping unit by optimized design for higher clamping force and speed.
Specifications
EB2-A Theoretical Capacity BPH 1800-2200
Number of Cavity / 2
Container Max. Container Volume Ltr 2
Max. Neck Size mm 40
Max. Bottle Diameter mm 110
Max. Container Height mm 350
Power Installed Power KW 41
Max. Heating Power KW 40
Compressed
Air		 Operating Air Pressure Kg/cm2 8
Air Consumption(Operating) Ltr/Min 1500
Blowing Air Pressure Kg/cm2 35
Air Consumption(Blowing) Ltr/Min 2000
Mould Clamping force KN 180
Mould Opening Stroke mm 200
Stretch Stroke mm 350
Machine Measurement (LxWxH) m 2.6x2.2x2
Weight Kg 3200

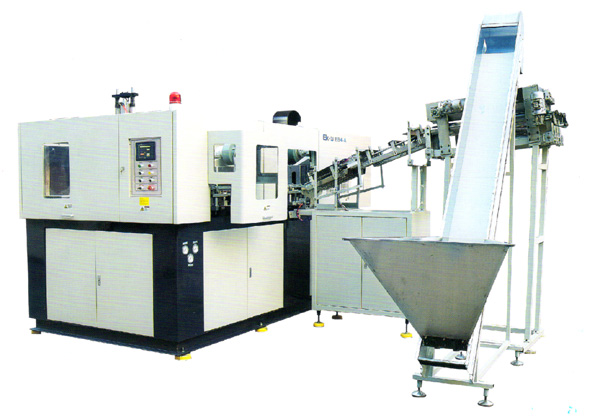

EB4-A


Preform conveyor equipped with sliding wheels,precise orientation,stable and reliable;

Operation panel by touch LCD,friendly interface and easy operation;

Layered preform heating system,easy temperature regulation,uniform heating effect to improve blow molding result to the utmost;
5-point double toggle clamping unit by optimized design for higher clamping force and speed.
Specifications
EB4-A Theoretical Capacity BPH 3300-4000
Number of Cavity / 4
Container Max. Container Volume Ltr 2
Max. Neck Size mm 40
Max. Bottle Diameter mm 105
Max. Container Height mm 350
Power Installed Power KW 68
Max. Heating Power KW 64
Compressed
Air		 Operating Air Pressure Kg/cm2 8
Air Consumption(Operating) Ltr/Min 2000
Blowing Air Pressure Kg/cm2 35
Air Consumption(Blowing) Ltr/Min 3800
Mould Clamping force KN 350
Mould Opening Stroke mm 200
Stretch Stroke mm 350
Machine Measurement (LxWxH) m 3.85x2.3x2
Weight Kg 5000

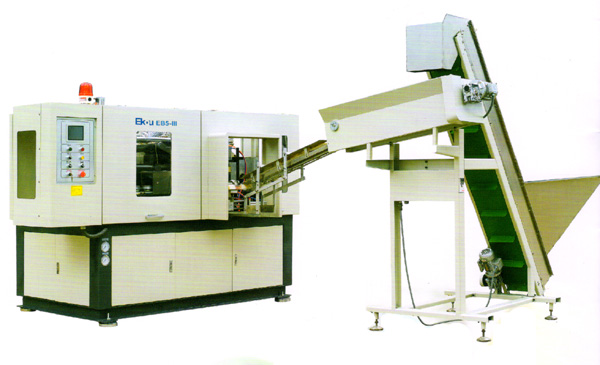

EB5-III


Preform conveyor equipped with sliding wheels,precise orientation,stable and reliable;

Operation panel by touch LCD,friendly interface and easy operation;

Layered preform heating system,easy temperature regulation,uniform heating effect to improve blow molding result to the utmost;
5-point double toggle clamping unit by optimized design for higher clamping force and speed.
Specifications
EB5-III Theoretical Capacity BPH 600-900
Number of Cavity / 1
Container Max. Container Volume Ltr 10
Max. Neck Size mm 120
Max. Bottle Diameter mm 180
Max. Container Height mm 350
Power Installed Power KW 31
Max. Heating Power KW 30
Compressed
Air		 Operating Air Pressure Kg/cm2 8
Air Consumption(Operating) Ltr/Min 800
Blowing Air Pressure Kg/cm2 30
Air Consumption(Blowing) Ltr/Min 900
Mould Clamping force KN 150
Mould Opening Stroke mm 230
Stretch Stroke mm 350
Machine Measurement (LxWxH) m 2.5X1.5X2
Weight Kg 2000
Other Accessories Machine

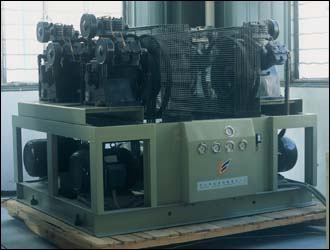

Air Compressor Air Purifying System
