Recommendation:

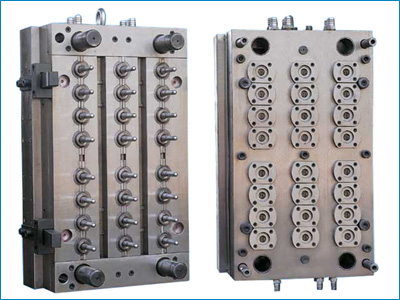

Special mould maker with 18 years (from 1987) experience and know-how in making multi-cavity (up to 48 cavities) hot runner PET preform moulds.

Mould parts machined by CNC machine tools.

High quality steel.

New designed tail-free mould enables fully automatic running and lower labour cost.

Patented OAS(Off-center Adjustment System).

Patented MTC(Mould Temperature Controller).

Offer perfect preform design.

Offer different design with different prices to meet different markets/buyers:
  Design Ref.Code Hot Plate/Hot Runner OAS Products
V1.0 Hot Plate Without Normal(with tail)
V2.0 Hot Plate With Good(without tail)
V3.0 Hot Runner With Excellent(without tail)

Quick delivery.

Guarantee of quality.
Specifications for V3.0 Mould
Cavity Nos.

24g Mould

(Length: 105mm)

32g Mould

(Length: 115mm)

42g Mould

(Length: 130mm)

 Suitable Machine
Dimension (mm) Weight (Kg) Dimension (mm) Weight (Kg) Dimension (mm) Weight (Kg)
4 (1x4) 500x260x430 330 500x260x450 350 500x260x465 365 HS-180 & up
8 (2x4) 500x380x430 500 500x380x450 525 500x380x465 545 HS-180 & up
12 (2x6) 650x380x430 650 650x380x450 685 650x380x465 710 HS-180 & up
16 (2x8) 800x380x460 860 800x380x480 905 800x380x495 935 HS-180 & up
18 (3x6) 715x550x480 1225 715x550x500 1280 715x550x520 1340 HS-250 & up
24 (3x8) 870x510x510
870x550x510		 1465
1595		 870x510x525
870x550x525		 1510
1645		 870x550x540 1700 HS-250 & up
32 (4x8) 890x670x520 2065 890x670x535 2130 890x670x550 2200 HS-400 & up
48 (4x12) 1180x670x520
1180x700x520 		2740
2870		 1180x670x535
1180x700x535		 2825
2960		 1180x670x550
1180x700x550		 2910
3050		 HS-400 & up
Note: Mould dimensions are for Vertical x Horizontal x Thickness
