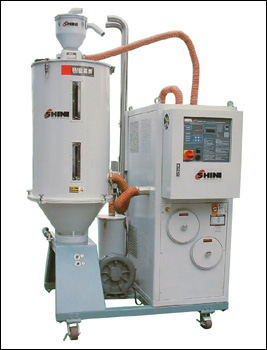

Loaders specifications
Model (MDL- 12 25 50 75 100 150 200 300 400 500 600 800
Heater power of dryer(KW) 1.6 2.8 4.2 5.0 6 6.6 12 15 18 19 20 24
Blower Horsepower(KW) 0.4 0.75 1.9 2.6 3.75 5.6
Regenerative heater capacity(KW) 2 2.5 3.5 6 7.5
Dehumidifiers model SD-60 SD-80 SD-120 SD-200 SD-300 SD-400 SD-500
External dimension(mm) 485X850
X1250		 485X850
X1470		 600X1130
X1650		 750X1340
X1650		 750X1340
X1650		 1000X1580
X1920
Weight(KG) 88 126 260 350 410 600 640 680
Regenerative blower horsepower(KW) / / 0.2 0.37 0.75 1.9

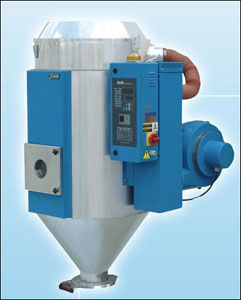

"Euro" Hopper Dryers
The SHD-U series "Euro" hopper dryers adopt hot air down-blowing design and use stainless steel material hoppers to avoid ideally suited for use with honeycomb dehumidifiers to dry engineering plastics.Hopper capacities range from 20 to 8000 liters with airtight material cleaning doors on models SHD-80U and above.The microprocessor control features digital display and auto star/stop timer.

Features:
Innovative design with sleek appearance.
Hot air down-blowing pipe ensures even distribution of hot air to maintain a steady temperature in the hopper and increase drying efficiency.
All air and material contact surfaces made from stainless steel.
Airtight material clearance door makes clean down more convenient.(model SHD-80U and above)
Microprocessor is used for accurate temperature control
Double overheat protection to ensure reliable operation
Digital PID temp. control with LED display.
7 day automatic start/stop timer to improve energy saving.
Equipped with main power switch and control switch.
Optional accessories include:standard or magnetic material base,mobile floor stand,suction box,hot air recycling,exhaust air filter,blower inlet filter,etc.

Model Hopper capacity(L) Process heater(Kw) Blower(w)
50/60Hz		 Dimension Floor stand Height Weight
SHD-20U 20 2 90/108 730x575x325 755x450x660 1228 18
SHD-40U 40 3 90/108 760x640x390 755x450x660 1260 25
SHD-80U 80 3.9 200/240 940x772x472 815x552x722 1440 50
SHD-120U 120 3.9 200/240 1210x722x472 815x552x722 1709 60
SHD-160U 160 6 250/300 1225x822x572 820x652x795 1725 90
SHD-230U 230 6 250/300 1505x822x572 820x652x795 2005 100
SHD-300U 300 12 400/480 1510x945x695 895x790x930 2010 130
SHD-450U 450 12 400/480 1860x945x695 895x790x930 2360 160
SHD-750U 750 18 750/900 2135x1170x920 1020x1000x1200 2670 220
SHD-900U 900 24 1100/1320 2410x1300x1050 1420x1200x1200 2530 250
SHD-1200U 1200 24 1100/1320 2840x1300x1050 1420x1200x1200 2780 376
