EC series water chiller is widely
used in plastics, electroplating, electronics, food, packaging,
chemical, architecture, medicine and etc.
|
| In plastics line, EC series water
chiller is used for supplying chilled water for plastic injection
molding machine and molds.
|
 In
EC series, there are two kinds of water chillers: |
 Water
Cooled Water Chiller;
Air Cooled
Water Chiller. |
| Design
Feature |
| Compact
and completely sealed structure, but high efficiency;
|
| Easy
installation, operation and maintenance; |
| Adopts
U.S.A. or Japan compressor and electronic parts to ensure
long service life; |
| Adopts
pipe type evaporator and condenser to enhance heat exchange
efficiency; |
| Equipped
with thermostatic expansion valve, motor protection device,
high/low pressure switch, high pressure safety valve(or
fusable insert) and alarm. |
|
 |
|

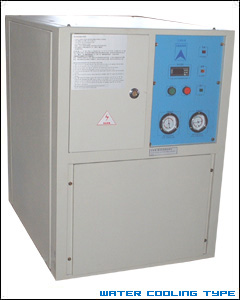

| Water
Cooling Type |
| Model |
Cooling Capacity
(Kcal/h) |
Total Power(Kw) |
Refrigerator Power
(Kw) |
Chill Water Flow(Ton/hr) |
Chill Water Pipe |
Cooling Water Flow(Ton/hr) |
Cooling Water Pipe |
Dimension(mm) |
Weight(Kg) |
| EC-03 |
10700 |
3.8 |
3.05 |
3 |
1'' |
4 |
1'' |
880x660x960 |
120 |
| EC-05 |
14600 |
5.18 |
4.43 |
3 |
1'' |
4 |
1-1/2'' |
880x660x1000 |
160 |
| EC-08 |
21500 |
8.45 |
6.95 |
6 |
1-1/2'' |
8 |
1-1/2'' |
1200x850x1200 |
260 |
| EC-10 |
28300 |
11.99 |
9.79 |
10 |
1-1/2'' |
12 |
2'' |
1500x850x1200 |
350 |
| EC-15 |
42000 |
13.37 |
11.55 |
10 |
1-1/2'' |
12 |
2'' |
1500x900x1200 |
400 |
| EC-20 |
60000 |
23.22 |
20.22 |
12 |
2'' |
15 |
2'' |
1800x900x1200 |
550 |
| EC-25 |
71400 |
28.3 |
25.3 |
20 |
2-1/2'' |
20 |
2-1/2'' |
2000x1000x1200 |
700 |
| EC-30 |
83000 |
31.5 |
28.5 |
20 |
2-1/2'' |
24 |
2-1/2'' |
2200x1200x1500 |
950 |
| EC-40 |
110000 |
37.54 |
33.54 |
20 |
2-1/2'' |
28 |
2-1/2'' |
2400x1400x1200 |
1200 |
| EC-50 |
143000 |
55.6 |
50.6 |
24 |
3'' |
30 |
3'' |
2500x1500x1600 |
1400 |
|
|
Refrigerant:
R22
Working range:
|
| Chilled
water outlet temperature: 5~20oC |
| Cooling
water outlet temperature: <32oC |

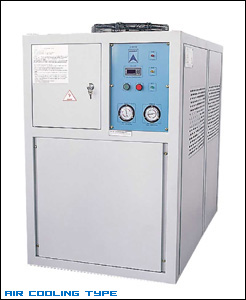

| Air
Cooling Type |
| Model |
Cooling Capacity
(Kcal/h) |
Refrigerator Power
(Kw) |
Fan Power(Kw) |
Chill Water Flow(Ton/hr) |
Chill Water Pipe |
Dimension(mm) |
Weight(Kg) |
| EC-02A |
5670 |
1.82 |
0.19 |
2 |
1'' |
800x650x1250 |
120 |
| EC-03A |
9500 |
2.68 |
0.30 |
3 |
1'' |
1200x600x1350 |
160 |
| EC-05A |
12600 |
4.43 |
0.38 |
4 |
1'' |
1250x650x1350 |
200 |
| EC-08A |
20800 |
7.00 |
0.55 |
6 |
1-1/2'' |
1550x750x1500 |
320 |
| EC-10A |
28300 |
9.06 |
0.96 |
8 |
1-1/2'' |
1550x1380x1500 |
450 |
| EC-12A |
31600 |
10.94 |
0.96 |
10 |
2'' |
1800x1380x1500 |
660 |
| EC-15A |
37500 |
13.88 |
1.10 |
12 |
2'' |
2450x1380x1650 |
750 |
| EC-20A |
55300 |
19.02 |
1.35 |
15 |
2'' |
2850x1380x1650 |
900 |
| EC-25A |
66500 |
23.91 |
1.35 |
20 |
2"-1/2" |
2850x1380x1700 |
1100 |
| EC-30A |
75000 |
27.76 |
1.65 |
20 |
2"-1/2" |
3350x1380x1700 |
1300 |
| EC-40A |
110600 |
38.04 |
1.65 |
25 |
2"-1/2" |
2850x1680x1800 |
1500 |
| EC-50A |
133000 |
47.82 |
2.20 |
25 |
2"-1/2" |
3350x1680x1800 |
1800 |
|
|
Refrigerant:
R22
Working range:
|
| Air
temperature:<35oC |
