Features

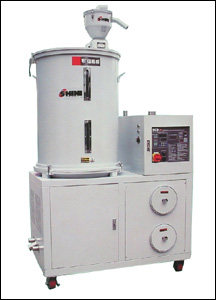

The SDL-Z combines AUTO-feeding,drying hopper and two station loaders to form a compact design.
Microprocessor control gives digital setting and display of drying temperature,loading time,99-hour timer for auto startup and fault alarm functions
Dried air up blow design.
Compact in size for easy moving and saving space.
Close loop conveying system for dried material to avoid reabsorption.
SDL-Z specification arrangement
Model SDL-50 SDL-100 SDL-200 SDL-400
Heater power of dryer 4.2 6 12 18
Feeding blower horsepower 0.75 0.75 1.9 2.6
Drying blower horsepower 0.2 0.25 0.4 0.4
External Dimension 485x850x1470 600x1130x1650 750x1340x1650 750x1340x1650
Weight 86 190 280 370
